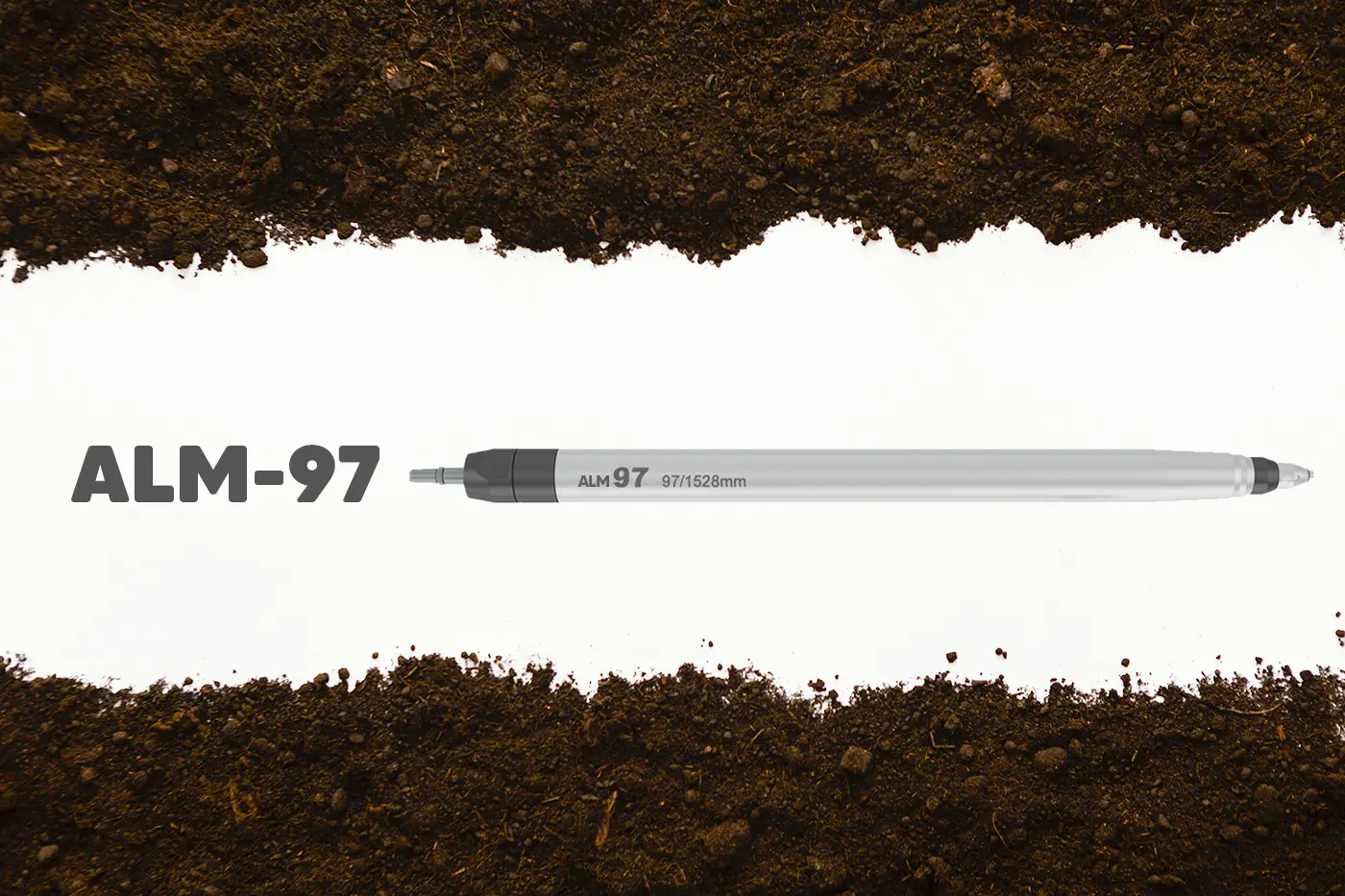

97 mm Pneumatic Underground Boring Machine
The ALM 97 Thrust Boring Machine is a powerful trenchless tool designed to install pipes and cables without digging. It creates a straight and clean horizontal bore under roads, sidewalks, and other structures—without disturbing the surface above.
This machine is part of our trusted Allame Ground Mole series, built for fast and safe underground installations. With its 97 mm bore diameter, the ALM 97 is ideal for laying gas pipes, water lines, telecom cables, and electrical conduits.
How It Works
The ALM 97 runs with compressed air at 6 bar pressure. It uses a pneumatic forward-and-back motion to move through the soil. This motion pushes the machine ahead, creating a tunnel in the ground.
The ALM 97 is best suited for medium-size utility lines. It works in many soil types, including clay, sandy soil, and soft mixed ground. Its steel body is tough and made for long-term use in the field.
Technical Highlights
• Bore Diameter: 97 mm
•Working Pressure: 6 bar (via air compressor)
•Motion Type: Pneumatic forward and reverse
•Application Areas: Under roads, driveways, pavements, green areas
•Suitable For: Gas pipes, water pipes, fiber optic cables, and power cables
•Operation Length: Up to 25 meters (based on ground conditions and compressor power)
Why Choose ALM 97?
The ALM 97 is a top choice for contractors who need speed, accuracy, and reliability. It reduces the need for open trenching, which saves time and money. Since there’s no digging, you don’t need to restore pavement or landscaping afterward. This makes it perfect for urban jobs or sensitive zones where surface damage must be avoided.
Simple to Operate, Easy to Maintain
Allame machines are made with operators in mind. The ALM 97 is compact, lightweight, and easy to transport. Setup is fast, and parts are easy to clean and service. With basic training, any crew can run this machine safely and effectively.
Built by Allame – Trusted Worldwide
Allame has been producing pneumatic boring machines since 1979. We export to over 70 countries and support our machines with parts, service, and expert advice.
